Know About VertexFX Online Trading Platform Structure

VertexFX is a Windows-based online trading platform designed in robust and strategic expandable capabilities for dealing rooms. It consists of the following Application Servers and modules.

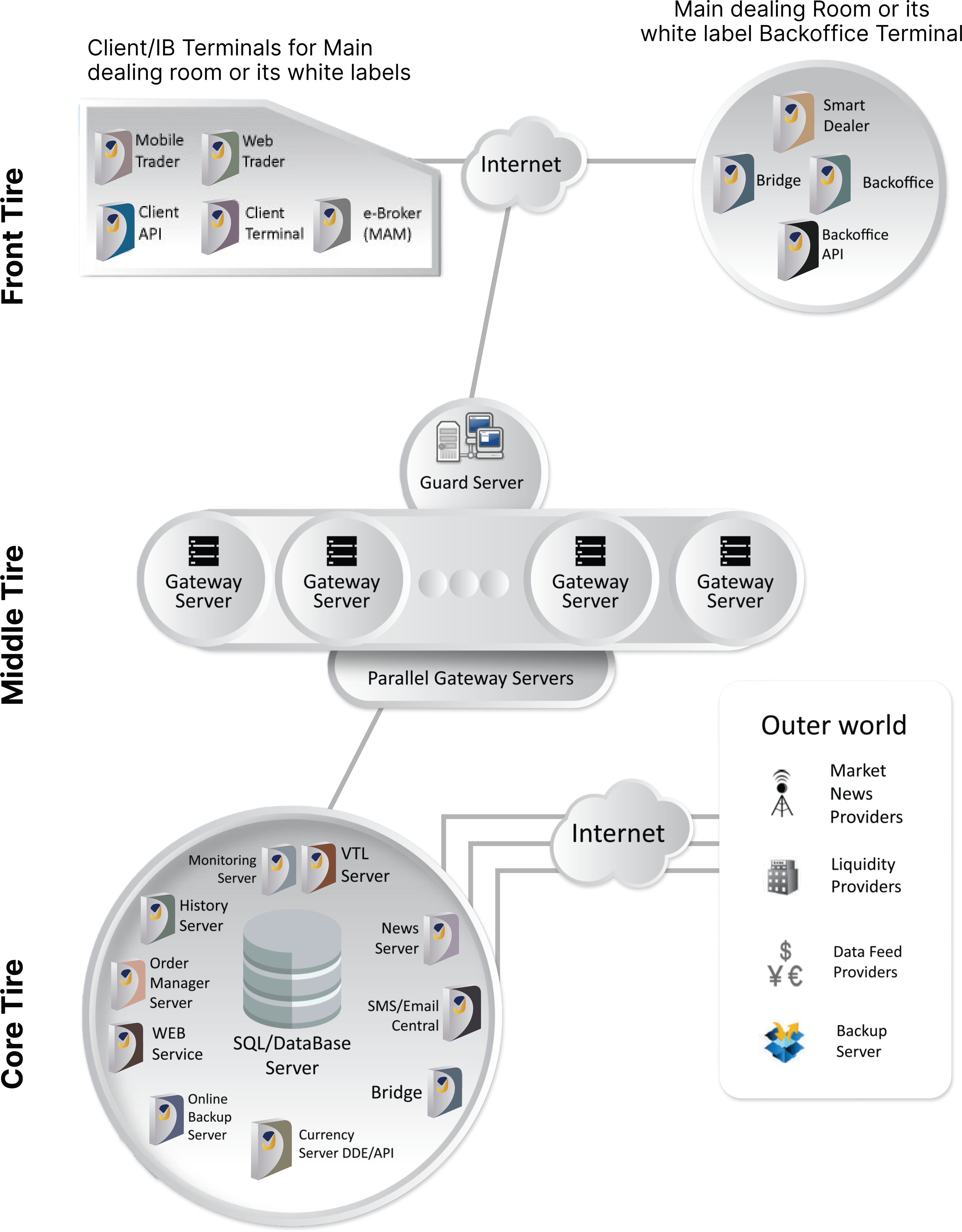

PRO SETUP

STANDARD SETUP

In consideration of the increased amount of users of the VeretxFX platform, Hybrid Solutions introduces the back-end server side application VertexFX Guard Server.

With VertexFX Guard your VertexFX platform will have performance enhancements and stability, thus can now handle massive number of user connections at the same time, running smoother than ever.

Read More

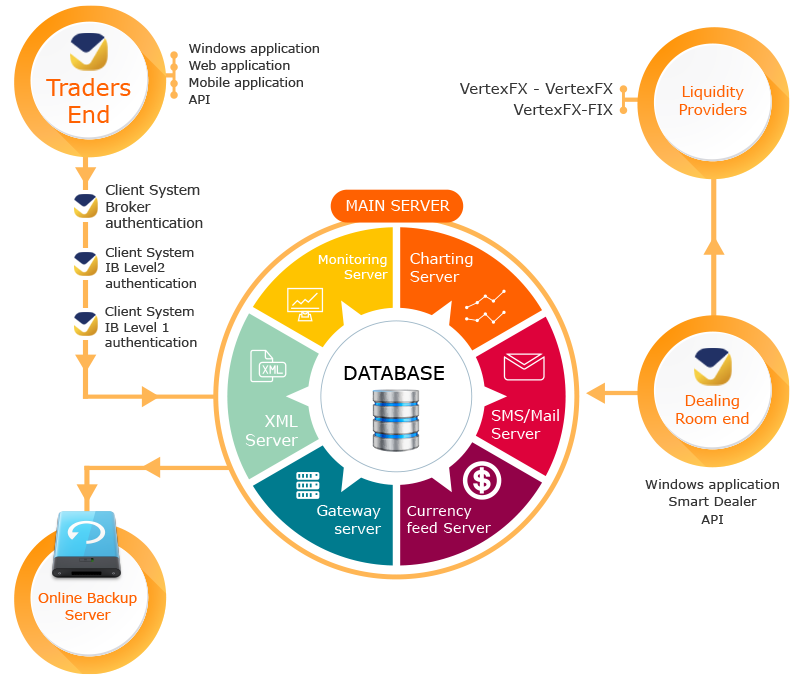

Optimum Server Structure

VertexFX Trader bundled this core structure for many reasons
and this server structure enable the clients end many facilities

  • SQL: Highly normalized and well structured DB to enable multi-Level System structure and a fast way to save, retrieve the information
  • One multithreaded Application, connecting all the clients, and the server applications together Using TCP or HTTP, in a creative fast way
  • Feeding capability; using DDE or API connectivity, also multi feeds can be connected and managed together
  • Independent charting server to guarantee fine charting data with full history up to 20 years
  • XML Server; another gateway for the web and mobile connectivity; also helping in the fast independent reporting
  • SMS/Mailing Central; for centralizing the notifications and alerts, bundled on the system in a creative way as one application

For running the VertexFX Trader solutions, it will be required to have a server setup, for the main server applications, Hybrid Solutions can provide the following server setups, and the VertexFX Customer can select from them according to our recommendations.

Setup Name Number of required servers / use
Minimum requirement setup (1 Server Setup) Specs: Main gateway server, holding all other system applications including prices feed.

Capacity: This setup can carry with V11.1 and above (assuming UNLIMITED online users license) 1000-1500 online VertexFX sessions with DDE feed broadcasting 100 symbols frequency of 200ms. The more symbols you add with faster broadcasting frequency the less online sessions yo need to expect.

Basic Setup (2 Servers Setup) Specs:
– Main Server: Contains system database, guard and main gateway.
– Feed Server: Contains feed application, currency server and second gateway.

Capacity: This setup can carry with V11.1 and above (assuming UNLIMITED online users license) 1200-1700 online VertexFX sessions with DDE feed broadcasting 100 symbols frequency of 200ms. The more symbols you add with faster broadcasting frequency the less online sessions yo need to expect.
Standard Setup (3 Servers Setup) Specs:
– Main Server: Contains system database, guard and main gateway.
– Feed Server: Contains feed application, currency server and second gateway.
– Online Backup Server: Contains online backup and third gateway.

Capacity: This setup can carry with V11.1 and above (assuming UNLIMITED online users license) 1200-1700 online VertexFX sessions with DDE feed broadcasting 100 symbols frequency of 200ms. The more symbols you add with faster broadcasting frequency the less online sessions yo need to expect.
Professional Setup (4 Servers Setup) Specs:
– Main Server: Contains system database, guard and main gateway.
– Feed Server: Contains feed application, currency server and second gateway.
– Online Backup Server: Contains online backup and third gateway.
– Load Balancing Server: Contains Gateway Gard.

Capacity: This setup can carry with V11.1 and above (assuming UNLIMITED online users license) 1500-2000 online VertexFX sessions with DDE feed broadcasting 100 symbols frequency of 200ms. The more symbols you add with faster broadcasting frequency the less online sessions yo need to expect.
Optimum Setup (5 Servers Setup) Specs:
– Main Server: Contains system database, guard and main gateway (Real Accounts).
– Feed Server: Contains feed application, currency server and second gateway.
– Online Backup Server: Contains online backup and third gateway.
– Load Balancing Server: Contains Gateway Gard.
– Dedicated Demo Gateway Server: Contains demo system gateway, Order Manager and some other server applications (DEMO accounts).

Capacity: This setup can carry with V11.1 and above (assuming UNLIMITED online users license) 1500-2500 online VertexFX sessions with DDE feed broadcasting 100 symbols frequency of 200ms. The more symbols you add with faster broadcasting frequency the less online sessions yo need to expect.
** All servers’ minimum specs are: – Processor: Intel(R) Xeon(R) CPU E5-2630 v4 @2.20GHz (20 CPUs), ~2.2GHz – Memory: 262 GB RAM

Those setups are allowing special capabilities according to each one,
the more professional setup the more capabilities are allowed as follows.

Capability Minimum requirement setup Basic Setup Standard Setup Professional Setup Optimum setup
Secured Database
TCP server
XML Server
First Feed Availability
Backup Feed Availability
Online Backup
Third Feed Availability
Hardware load Balancing
Dedicated Demo server
